Fuel is Freedom

Who's making your fuel when the music stops?

Sheltering in? In times of war, natural disaster, pandemic & national emergency people have turned to a little known technology called wood gasification to transform sticks and branches from their own property into clean gaseous fuel.

Run spark ignited engines, pump well water, heat greenhouses, filter water, kilns, forges and more. Stay safe at home. Secure self sufficient power for your off grid homestead or cabin.

Wood gas has a long history and a proud lineage. Nature's abundance into fuel.

Build It Right the First Time

Note: This is an archive of works from 2014-2017.

Contents of Wood Gasifier Builder Set

  • 1

    Wood Gasifier Builder's Bible

    • Wood Gasifier Builder's Bible: 100's of Photos, Theory of Operation: System Layout, Critical Sizing Charts & Operation (238 pg)

  • 2

    Wood Gas Build Videos

    • Wood Gasifier Build Video- Part 1 (16 min)

    • Wood Gasifier Build Video- Part 2 (13 min)

    • Wood Gasifier Build Video- Part 3 (17 min)

  • 3

    Troubleshooting Download Issues

    • Problems Downloading? Take 60 Seconds to Read This Please

  • 4

    Wood Gas CAD Files

    • 2D Flat CAD Files for Laser & CNC Plasma Cutting- (100+ files) SAVE TIME!

  • 5

    Extras

    • Blower Motor Tutorial (10 min)

    • Gasifier Monorator Hopper Build (4 min)

    • Gas Storage Bag Tutorial (4 min)

    • Gasifier Maintenance Video (3 min)

  • 6

    Bonus: Solar Shed Plans

    • Solar Station Plans from 2015

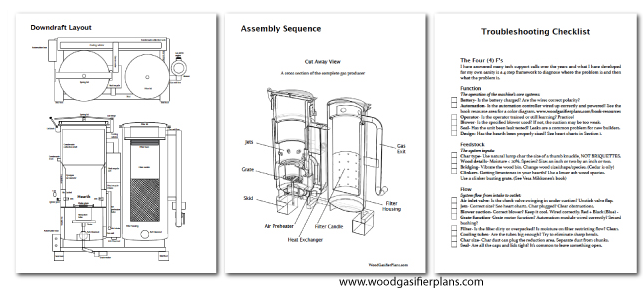

A few sample pages...

Reader Builds

Wood gasifier plans turned into wood gasifiers

This is just a sample of the photos that we have received over the years. If they can do it, couldn't you? Do you have a better energy plan when the SHTF?

Reviews

Reader feedback

“I would like to thank you so much for the plans. My generator started immediately the very first time!”

Byron

“This is the book you need if you want to build the gasifier on the cover. It's very, very, very well illustrated and is amazing in details. Even a newbie to wood gas can make one. ”

Jan

“I have built a couple small experimental gasifiers and have the first edition of this book. The author has put even more details in the second edition and hides nothing and has taken the mystery out of how they work and how to build one.”

Steve

“I am a red seal fabricator welder and I found this book informative and technically sound. However the format makes things understandable in such a way that even a non-trade person could make the final product happen.”

Jared

“The foremost complete and exhaustive expose on wood gasification. There isn't another writing as complete or definitive as this manual.”

P.T. Moore

What is included:

With the information in this plan set and some ingenuity on your part, you can: run generators, fuel older vehicles & gas tractors, heat greenhouses, pump well water, fire up kilns & forges, make activated charcoal for water purification, go off grid and much more!

  • Step by step wood gasifier plans ebook

  • Build videos

  • 2D flat CAD dxf/pdf files

  • Download everything now - Good computer & good internet required. Be resourceful and put this on a thumb drive immediately. 3 month access

Not included:

Here is a list of services not provided in the set

  • No custom design work or project consulting. Author support not included. Additional charges apply

  • No IT support. Ben can't fix your old computer or internet speed. The downloads are good!

Start downloading now

These are the most popular wood gasifier plans in the world. Start your build with confidence.



New to Wood Gasification?

Watch this video series from 2014

During WWII 1 million gasifiers were created and placed into action to provide fuel when oil wasn't available, saving families and keeping their lives moving forward in a positive direction. That is the good news. The bad news is, many home built units failed from a lack of understanding and a rushed build. Despite the drum beats of war, these people didn't prepare in time. Those drums are beating again. Will you be ready?

Purchasing Questions? Hire Ben/Consult?

Wastebot@reinventtheworld.net



FAQ

Answers to common questions

  • Purchasing questions?

    wastebot@reinventtheworld.net

  • What size/type engine can I run?

    The design uses propane tanks and they are good for 500cc - 5.0 liter internal combustion engines. Diesel engines can work with up to 75% wood gas/25% diesel. If you want to run a slightly larger engine, then use the hearth sizing chart and scale up the rest of the system to match.

  • Applications?

    With the information in this plan set and some ingenuity on your part, you can: run generators, fuel older vehicles & gas tractors, heat greenhouses, pump well water, fire up kilns & forges, make activated charcoal for water purification, go off grid and much more!

  • Wood types? Run time?

    Wood chunks are mandatory because they make the best charcoal. The secret is in the charcoal chemistry. Use a table saw/ band saw to make them. No pellets, no hog fuel, no tires, no garbage, etc. Wood species does matter. Most work, but not all. Pine fir and oak are good. Cedar is quite oily and cottonwood is too ashy. Test, test, test. The run time depends on how dense your wood is. The base reactor will hold a 40 minute load for initial testing. Add a hopper and get run times of several hours. Run a batch in the morning to charge batteries. Run again in the evening if needed. 24/7 is UNREALISTIC. Design your feed system around your wood type and energy needs.

  • How much does a wood gasifier cost to build?

    Bare bones, expect to spend $1200 - $1700. Using CNC parts, self built, expect to spend $2200 - $2700. Subcontract portions of your build and expect to spend around $4,000. Done for you turn-key, expect to spend $6500 in mild steel, $9000 range in stainless.

  • Can I build & sell gasifiers?

    If you build a gasifier and take the time to master your craft for 1 year, then you can build and sell your own design variation. You handle your own tech support. You don't use Ben's name or company in your marketing. You will only be successful if you teach and add value to the community. Solve new challenges and contribute to the wood gas lineage. If you are looking for a quick buck business opportunity, then don't bother, you will FAIL. There are no shortcuts in life. Read that twice!

  • Wood gas storage and energy conversion?

    You generally do not need to store gas. The gas is produced on demand by the suction of your engine or blower motor. You can bag the gas, but it's bulky. You can compress the gas into hydrogen storage tanks, but don't put wood gas into air compressor tanks because the hydrogen can embrittle the metal over time and rupture your tank. Danger! The energy conversion is approximately 2.5 lbs of bone dry chunks into 1 kilowatt/hr of power in a 3600 rpm engine. 3 lbs per kw/hr at 1800 rpm.

  • Pitfalls/challenges?

    A poorly built/ low suction/ improperly tuned gasifier can produce tar. Tar occurs when wood oils aren't completely turned into wood gas and end up in the engine valve stems as creosote. When a gasifier is sized to the correct engine, using the charts in the book, then this isn't a problem. As a new user it is recommended you use an old engine to practice with while you learn the art of being a wood gas operator.

  • Can you build a gasifier for me?

    Not usually, but if Ben is making a new book or there is enough cash demand to do a production run of 10 units, then it may be possible. Ben only builds stainless gasifiers. No grant funded projects please, grant chasers are our #1 waste of time at woodgasifierplans.com



Wood Gasifier Builder's Bible

2020 3rd Edition Print
